Turbo 5-55 Bar Feeder
Make: FMB | Bar Length: 6', 12' | Bar Diameter: 0.196” – 2.165”
The FMB Turbo 5-55, available in 6′ or 12′ configurations, is an automatic bar feeder for processing bars in the diameter range of 5-55mm and in lengths up to 3200mm, 3800mm, or 4200mm on machine tools. Quick change polyurethane guide channels allow for quiet operation at high RPM while feeding round, square or hex bar stock.
Features: Turbo 5-55 Bar Feeder
- Bar diameter capacity: 5mm to 55mm (0.196” to 2.165”)
- Automatic loading magazine – 11 linear inches of rack capacity
- Polyurethane guide channel system – noise & vibration dampening
- Quick change guide channels and pusher
- Double pusher, space-saving design
- Separate floor-mounted electric cabinet isolates electronics from vibration
- Schneider motion control – dependable & user friendly, easy bar feeder parameter changes
- (1) Guide channel set to be chosen by customer. Several sizes to choose from, each handling a specific stock range. See table above (spindle liner required if channel set is not lathe’s max capacity)
- 1) Universal hard nose and (1) nylon nose I.D. liner specific to pusher
- (1) O.D. bar stock collet to be chosen by customer (specific collet needed for each stock diameter)
- Custom lathe cable and interface plugs
- Outboard roller steady rest – quick adjust system and super rigid design, mounted to base of machine to provide maximum support of bar stock and pusher
- Sigmatek menu-driven touchscreen control

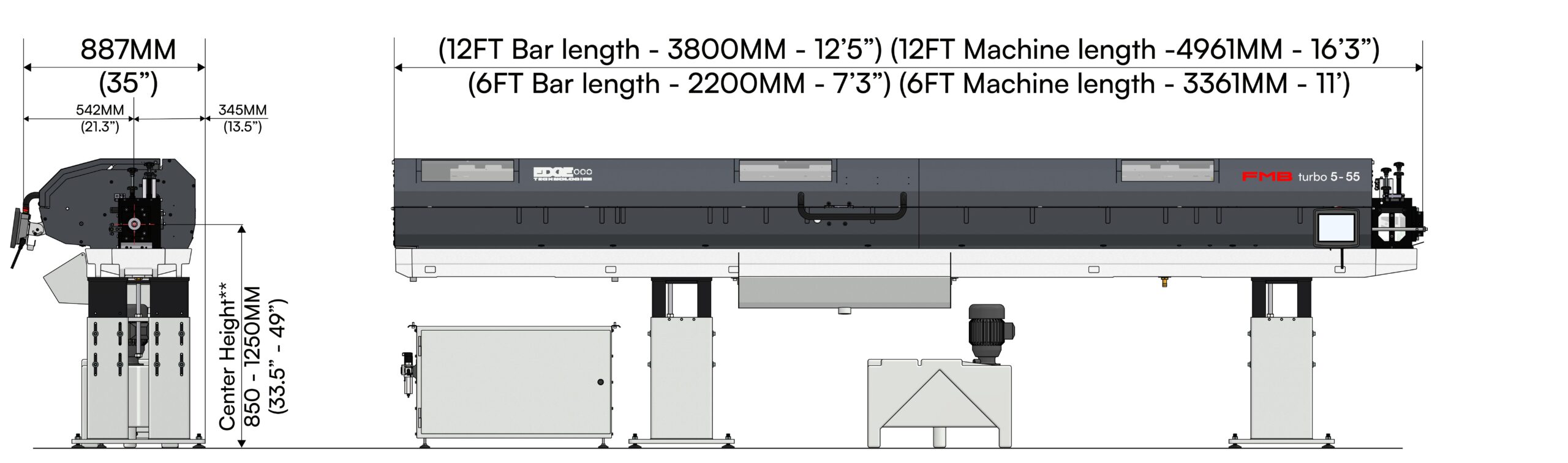

| Technical Specifications | |
|---|---|
| Bar Diameter | 5mm – 55mm (0.196” – 2.165”) |
| Bar Length | 1000mm – 3800mm (39.4” – 12’5”) |
| Magazine Rack Capacity | 279.4mm (11” |
| Magazine Rack Angle | adjustable 6-20° |
| Maximum Remnant Length | 530mm max. (18.90”) |
| Bar Loading Cycle Time | Approx. 35 sec for 12’ bars |
| Feed Force (Pusher Torque) | Max 750 N, adjustable |
| Forward Feed Rate | 1000mm/sec (2360in/min) max, adjustable |
| Return Feed Rate | 0-698.5mm/sec (0-1650in/min) max, adjustable |
| Power Consumption | 2.5 kW/3.125 kVA |
| Operating Voltage | 230-400 V/60 Hz – 3 phase |
| Control Voltage | 24V DC |
| Oil Capacity | 80 liters (22 gallons) |
| Oil Viscosity | ISO 150 cST – Machine oil ISO BG32 – Air oil |
| Compressed Air Supply | 6 bar (90 psi) |
| Compressed Air Consumption | ~10 liters per loading cycle |
| Machine Weight (w/out Oil) | 2794kg (6160lbs) |
| Material Straightness Specification | 0.007” TIR/foot of material (V blocks, 6’ equidistant) |
| Guide Channel Sets | Pusher Diameter | Minimum Bar Size | Maximum Bar Size | Max. Bar Size With Front Remnant Expulsion * |
|---|---|---|---|---|
| Ø 10mm | 10mm | 4mm (0.157″) | 8mm (0.315″) | 10mm (0.393″) |
| Ø 15 mm | 15 mm | 5 mm (0.196”) | 13 mm (0.511”) | 15 mm (0.590”) |
| Ø 20 mm | 20 mm | 6 mm (0.236”) | 17.5 mm (0.688”) | 20 mm (0.787”) |
| Ø 25 mm | 25 mm | 10 mm (0.393”) | 23 mm (0.906”) | 25 mm (0.984”) |
| Ø 32 mm | 32 mm | 10 mm (0.393”) | 29 mm (1.141”) | 32 mm (1.259”) |
| Ø 36 mm | 36 mm | 12.7 mm (0.500”) | 33 mm (1.299”) | 36 mm (1.417”) |
| Ø 38 mm | 37 or 38 mm | 12.7 mm (0.500”) | 35 mm (1.378”) | 38 mm (1.500”) |
| Ø 42 mm | 42 mm | 17 mm (0.669”) | 38.5 mm (1.515”) | 42 mm (1.653”) |
| Ø 45 mm | 45 mm | 19 mm (0.750”) | 42 mm (1.653”) | 45 mm (1.771”) |
| Ø 51 mm | 51 mm | 25.4 mm (1.000”) | 48.7 mm (1.917”) | 51 mm (2.007”) |
| Ø 55 mm | 55 mm | 25.4 mm (1.000”) | 51 mm (2.000”) | 55 mm (2.165”) |
