Bar Feeders

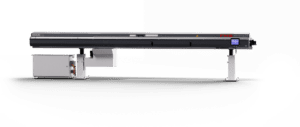

The Micromag 20 Bar Feeder is an automatic magazine style bar feeder equipped with a single bar pusher design that can reduce bar change time by 50%, a feed mechanism that is automatically pulsed to ensure the profiled material is successfully located in the lathe collet / chuck, length monitoring and quick-change guide channels.

Micromag 20 Bar Feeder

0.8mm - 20mm | .031" - .787"

Bar Length: 6', 12'

Headstock Type: Fixed, Sliding

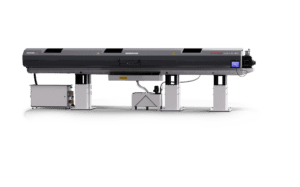

The FMB Turbo 2-20, available in either 6' or 12' configuration, is an automatic bar feeder for processing bars in the diameter range of 2-20 mm in lengths from 6’ to 14’ on CNC lathes. Equipped with a Swiss type headstock synchronization device, peck drilling and threading on small diameter bars is simple and done with high-tolerances. The Turbo 2-20 is designed to automatically feed round, square or hexagonal bars into CNC lathes.

Turbo 2-20 Bar Feeder

2.0mm - 20mm | 0.078" - 0.787"

Bar Length: 6', 12'

Headstock Type: Fixed, Sliding

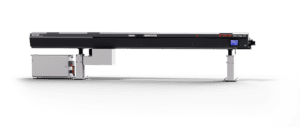

The FMB Minimag 20 Bar Feeder is an automatic magazine style bar feeder equipped with a single bar pusher design that can reduce bar change time by 50%

Minimag 20 Bar Feeder

2.0mm - 20mm | .078" - .787"

Bar Length: 12'

Headstock Type: Fixed, Sliding

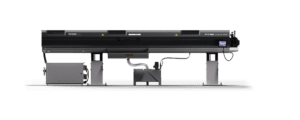

The FMB Turbo 3-26, available in either 6' or 12' configuration, is a magazine style automatic bar feeder designed for feeding round, square and hexagonal bar material into all types of sliding, fixed, CNC, or cam operated lathes. Quick change polyurethane guide channels allow for quiet operation of the Turbo 3-26 at high RPM while feeding round, square or hex bar stock. The Turbo 3-26 is compatible with all types of sliding or fixed, CNC or cam operated lathes with spindle bores up to 38mm.

Turbo 3-26 Bar Feeder

3.0mm - 26mm | 0.118" - 1.023"

Bar Length: 6', 12'

Headstock Type: Fixed, Sliding

The FMB Turbo 3-38, available in 6' or 12' configurations, is an magazine type, automatic bar feeder designed for feeding round, square and hexagonal bar material into all types of sliding, fixed, CNC, or cam operated lathes. Quick change polyurethane guide channels allow for quiet operation at high RPM while feeding round, square or hex bar stock.

Turbo 3-38 Bar Feeder

3.0mm - 38mm | 0.118 - 1.500"

Bar Length: 6', 12'

Headstock Type: Fixed, Sliding

Turbo RS 3-38 Bar Feeder

3.0mm - 38mm | .118 - 1.500"

Bar Length: 12'

Headstock Type: Sliding

The Turbo 5-55, 5-65, and 8-80 are compatible with all kinds of fixed headstock lathes. Swiss type synchronization device is also available.

Turbo 5-55 Bar Feeder

5.0mm - 55mm | 0.196" - 2.165"

Bar Length: 6', 12'

Headstock Type: Fixed, Sliding

The FMB Turbo 5-65, available in 6' or 12' configurations, is an automatic bar feeder for processing bars in the diameter range of 5-65mm and in lengths up to 3200mm, 3800mm, or 4200mm on machine tools. Quick change polyurethane guide channels allow for quiet operation at high RPM while feeding round, square or hex bar stock.

Turbo 5-65 Bar Feeder

5.0mm - 65mm | 0.196" - 2.559"

Bar Length: 6', 12'

Headstock Type: Fixed, Sliding

The FMB Turbo 5-65 A (Auto-Adjust) is a magazine style automatic bar feeder for processing bars in the diameter ranges of 5-65mm and in lengths from 12’ to 14’ on CNC lathes. Auto adjusting polyurethane guide channels allow for quiet operation at high RPM while feeding round, square or hex bar stock. The Turbo 5-65 A is compatible with all kinds of fixed headstock lathes. Swiss type synchronization device is also available.

Turbo 5-65 A Bar Feeder

5.0mm - 65mm | 0.196" - 2.559"

Bar Length: 12'

Headstock Type: Fixed, Sliding

The FMB Turbo 8-80, available in 8' or 12' configuration, is an automatic bar loading magazine feeder for processing bars in the diameter range of 8-80mm and in lengths up to 3200mm, 3800mm, or 4200mm on machine tools. Quick change polyurethane guide channels allow for quiet operation at high RPM while feeding round, square or hex bar stock.

Turbo 8-80 Bar Feeder

8.0mm - 80mm | 0.315" - 3.150"

Bar Length: 10', 12'

Headstock Type: Fixed, Sliding

The FMB Turbo 20-100 expands on the already established Turbo "Heavy Metal" line of hydrodynamic 12' through 24' bar loading magazine feeders. This unit also offers a one size channel set that automatically adjusts for all material sizes. Quick change polyurethane guide channels allow for quiet operation at high RPM while feeding round, square or hex bar stock. The Turbo 20-100 automatic bar feeder is compatible with all types of sliding or fixed, CNC or cam operated lathes with spindle bores up to 102mm.

Turbo 20-100 Bar Feeder

20mm - 100mm | 0.787" - 4.00"

Bar Length: 12'

Headstock Type: Fixed, Sliding
