Rebel 102 Servo V3
Make: EDGE | Bar Length: Short | Bar Diameter: 0.315” – 4”
The Rebel 102 Servo V3 is a compact bar loading system for processing bars in the diameter range of 8 – 102mm and in lengths up to 1520mm (5’) for CNC lathes.
With a large magazine capacity allowing for long unattended operation, the Rebel 102 bar feeder combines the advantages of auto bar loading with a small footprint at an economical price.
Features: Rebel 102 V3 Servo Bar Loader
- Bar diameter capacity: 8mm to 102mm (0.315” to 4.00”)
- Bar Length capacity: 60” (Max. Bar Length determined by spindle length)
- Magazine Capacity – 28 linear inches
- Fully automatic adjust for bar diameter
- Automatically adjusts pusher force for bar size
- Spindle liner storage included on rear of stand
- Soft load material presentation
- Touchscreen control – with 1,000 part program storage
- All electric operation – no shop air required
- Fixed piece feedout and sub-spindle mode
- Standard X axial shift device (Z optional)
- Return and wait function (reduce bar change time by 30%)
- Rear load (front load optional)
| Technical Specifications | |
|---|---|
| Bar Diameter | 8mm (0.315”) – 102mm (4.00”) |
| Bar Length | Max – 1520mm (60”) (must not exceed spindle length) |
| Magazine Capacity | 710mm (28”) |
| Bar Loading Cycle Time | 20 sec |
| Power Consumption | 1 kW/1.5 kVA |
| Operating Voltage | 230 V/60 Hz – 3 phase |
| Control Voltage | 24V DC |

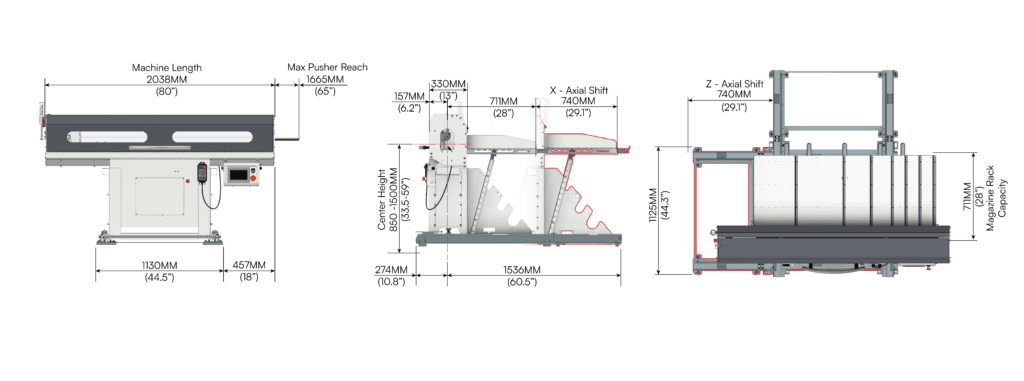

| Machine Footprint: | 84” x 48” |
| Weight | 500 kg (1100 lbs) |
| Bar Weight | 79 kg (175 lbs) per bar 680 kg (1500 lbs) magazine max |
