Rebel 80 Servo V3 Bar Loader

Make: EDGE | Bar Length: Short | Bar Diameter: 0.315” – 3.150”

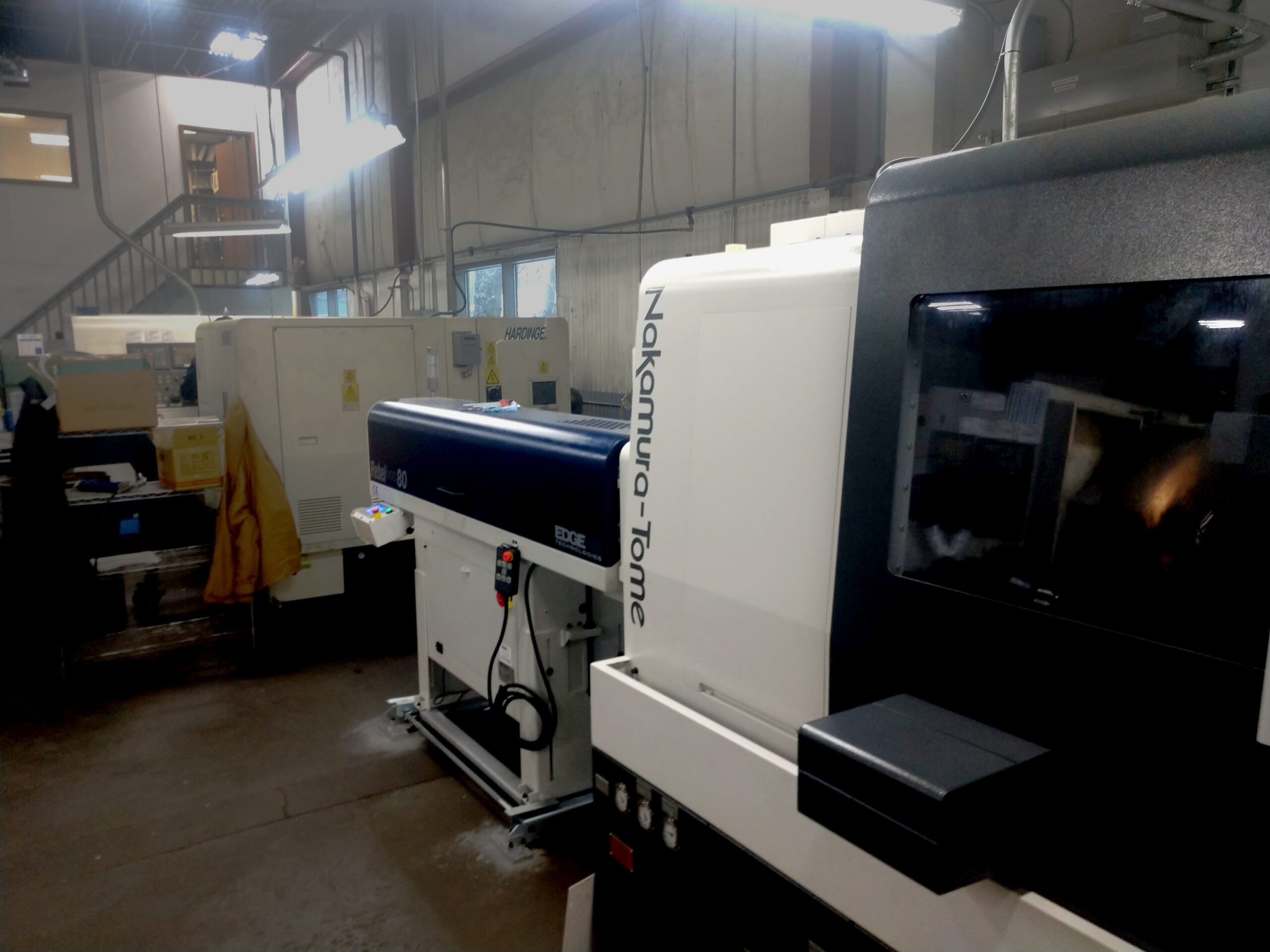

The Rebel 80 Servo is a compact bar loading system for CNC lathes. Features include a large magazine capacity, easy programming, easy centerline adjustment, remote control axis jog, all electric operation, linear feed, Servo drive, and a soft load design.

The Rebel 80 Servo V3 combines advantages of auto bar loading with a small footprint and an economical price. This short loader is built to feed bars in the diameter range of 8-80mm.

Features: Rebel 80 Servo V3 Bar Loader

  • Bar diameter capacity: 8 mm to 80 mm (.315” to 3.150”)
  • Bar length capacity: 60” (max. bar length determined by spindle length)
  • Magazine capacity is 28 linear inches
  • Mitsubishi PLC controller—powerful & user friendly
  • Full automatic adjust for bar diameter & part length
  • Complete setup in 3 minutes
  • Automatically adjusts pusher force for bar size
  • Accurate positioning without a mechanical stop
  • Spindle liner storage included on rear of stand
  • Soft load material presentation

  • Touch screen control – with 300 part program storage
  • All electric operation – no shop air required
  • Fixed piece feed-out and sub-spindle mode
  • Lathe spindle speed can be maximized
  • Material length can be uniform or random
  • Material can be round, hexagonal or shaped
  • (2) Pushers included: 10 mm, 19 mm
  • Standard X axial shift device (Z optional)

View Bar Feeder

Technical Specifications
Bar diameter capacity:8 mm to 80 mm (.315” to 3.150”)
Maximum bar length:60” (not to exceed spindle length)
Magazine rack capacity:720 mm (28”)
Bar loading cycle time:20 seconds
Power consumption:1 kW – (1.5 kVA)
Operating voltage:230/60Hz 3-phase
Control voltage:24V DC
Machine Footprint:84” x 48”
Machine weight:1,100 lbs
Spindle Center Height:950 mm – 1350 mm (38.000” – 53.125”)
Bar weight:125 lbs. per bar (1250 lbs. magazine max)
Rebel 80 V3 dimension drawing
