Rebel 65 Servo V3
Make: EDGE | Bar Length: Short | Bar Diameter: 0.196” – 2.63”
The Rebel V-65 Servo short loader is a compact bar loading system for CNC lathes that combines advantages of auto bar loading with a small footprint and an economical price.
Features:
- Bar diameter capacity: 5mm to 67mm (0.196” to 2.630”)
- Magazine Capacity – 28 linear inches
- Easy centerline adjustment using sliding scale
- Standard x-axis axial shift device (z-optional)
- Soft load material presentation
- Remote control pendant
- Fixed piece feedout and sub-spindle mode
- Lathe spindle speed can be maximized
- Material length can be uniform or random
- Material can be round, hexagonal, or shaped
- (3) pushers included: 6mm, 12mm, 19mm
- Rear load (front load optional)
| Technical Specifications | |
|---|---|
| Bar Diameter | 5mm to 67mm (0.196” to 2.630”) |
| Bar Length | 1.5m model – 1524mm (60”) |
| Magazine Capacity | 710mm (28”) |
| Bar Loading Cycle Time | 20 sec |
| Power Consumption | 1 kW/1.5 kVA |
| Operating Voltage | 230 V/60 Hz -3 phase |
| Control Voltage | 24V DC |
| Bar Pushers | Ø 6mm Hardened steel Ø 10mm Hardened steel Ø 19mm Hardened steel |

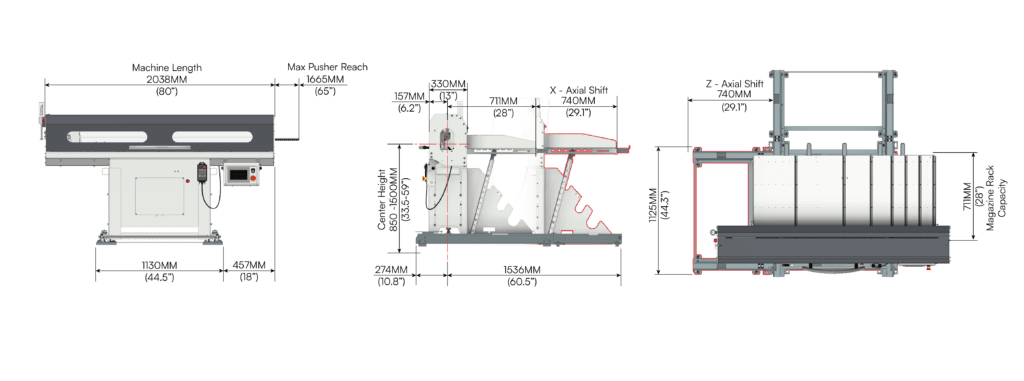

| Machine Footprint | 75” x 48” |
| Machine Weight | 500 kg (1100 lbs) |
| Spindle Center Height | 850mm – 1500mm (33.50” – 59”) |
| Face Off Accuracy | +/- 1.5mm |
| Part Position Accuracy | +/- 0.1mm |
| Axial Shift Distance | 740mm (29”) |
