Bar Feeders


The Rebel V-65 Servo short loader is a compact bar loading system for CNC lathes. V-65 features include a large magazine capacity, easy programming, audible alarm, axial shift, feed force, linear feed Servo drive and optional slug feed.
Rebel V-65 Servo Bar Feeder
5.0mm - 65mm | 0.196 - 2.630"
Bar Length: Short
Headstock Type: Fixed
Rebel 80 Servo V3
8.0mm - 80mm | 0.315" - 3.150"
Bar Length: Short
Headstock Type: Fixed
The Rebel 102 Servo SE is a compact bar loading system with a large magazine capacity, conversational programming, user-friendly software, programmable bar diameter & part length, remote control axis jog, linear feed & Servo drive, and a rotating stock that does not come in contact with the loading magazine, allowing high speed machining, especially in hex, square and profiled stock.
Rebel 102 Servo SE
8mm - 102mm | 0.315" - 4.000"
Bar Length: Short
Headstock Type: Fixed

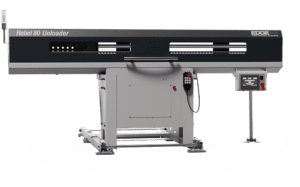

The Rebel 80 Servo Unloader is a compact unloading system for CNC lathes with user friendly software, Servo controlled positioning for unloading of parts, touch screen and menu driven programming, fold away axial track, an axial shift that allows for spindle liner changes.
Rebel 80 Servo Unloader
8mm - 80mm | 0.315" - 3.150"
Bar Length: Short
Headstock Type: Fixed
The FleXsys LE is a loading and unloading system for automation, specifically long shaft jobs
Edge Technologies brand logo
FleXsys LE Load/Extract
10mm - 66mm | .394" - 2.598"
Bar Length: Short
Headstock Type: Fixed
Edge Ranger 112 bar feeder is a magazine style automatic bar feeder with a double pusher, dual anti-vibration devices, gripper that holds and inserts the new bar into the bar collet and is also used to extract the remnant, rotating tip & collet, bushing blocks, sync device, belt drive, remote pendant and operator control panel.
Edge Technologies brand logo
Ranger 112 Bar Feeder
1.5mm - 15mm | 0.059" - 0.590"
Bar Length: 12'
Headstock Type: Fixed, Sliding
The Scout 320 is a magazine style automatic bar feeder designed for feeding round, square and hexagonal bar stock in lengths up to 12', in a diameter range of 3-27 mm, into CNC lathes. The Scout 320 comes equipped with a Mistubishi controller and Servo drive standard. It also features dual anti-vibration devices that stabilize the bar stock at two critical points between the guide channel and lathe spindle maximizing RPM potential. The polyurethane guide channels increase strength and stability.
Scout 320 Bar Feeder
3.0mm - 20mm | 0.118" - 1.062"
Bar Length: 12'
Headstock Type: Fixed, Sliding

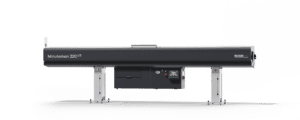

The Minuteman 320 SE has a double pusher, dual anti-vibration devices, a gripper device that holds and inserts the new bar into the bar collet and is also used to extract the remnant, a rotating tip & collet, and a sync device.
Edge Technologies brand logo
Minuteman 320 SE Bar Feeder
3.0mm - 20mm | .118" - 1.062"
Bar Length: 6', 12'
Headstock Type: Fixed, Sliding
The Edge Technologies Patriot 338 Bar Feeder is designed with a double pusher, stock size adjustment, universal bushing blocks, a dual anti-vibration bushing device, self-centering gripper that holds and inserts the new bar into the bar collet and is also used to extract the remnant, a rotating tip & collet, an oil reservoir that allows for full storage of collets and bushing blocks in the back stand, and touch screen control.
Edge Technologies brand logo

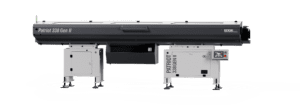

Patriot 338 Bar Feeder
3.0mm - 38mm | 0.118 - 1.500"
Bar Length: 8', 12'
Headstock Type: Fixed, Sliding
The Edge Technologies Patriot 551 Bar Feeder is designed with a double pusher, stock size adjustment, universal bushing blocks, a dual anti-vibration bushing device, self-centering gripper that holds and inserts the new bar into the bar collet and is also used to extract the remnant, a rotating tip & collet, an oil reservoir that allows for full storage of collets and bushing blocks in the back stand, and touch screen control.
Edge Technologies brand logo
Patriot 551 Bar Feeder
5.0mm - 51mm | 0.196" - 2.145"
Bar Length: 8', 12'
Headstock Type: Fixed, Sliding
The Micromag 20 Bar Feeder is an automatic magazine style bar feeder equipped with a single bar pusher design that can reduce bar change time by 50%, a feed mechanism that is automatically pulsed to ensure the profiled material is successfully located in the lathe collet / chuck, length monitoring and quick-change guide channels.
FMB brand logo
Micromag 20 Bar Feeder
0.8mm - 20mm | .031" - .787"
Bar Length: 6', 12'
Headstock Type: Fixed, Sliding
The FMB Turbo 2-20, available in either 6' or 12' configuration, is an automatic bar feeder for processing bars in the diameter range of 2-20 mm in lengths from 6’ to 14’ on CNC lathes. Equipped with a Swiss type headstock synchronization device, peck drilling and threading on small diameter bars is simple and done with high-tolerances. The Turbo 2-20 is designed to automatically feed round, square or hexagonal bars into CNC lathes.
FMB brand logo
Turbo 2-20 Bar Feeder
2.0mm - 20mm | 0.078" - 0.787"
Bar Length: 6', 12'
Headstock Type: Fixed, Sliding
The FMB Minimag 20 Bar Feeder is an automatic magazine style bar feeder equipped with a single bar pusher design that can reduce bar change time by 50%
FMB brand logo
Minimag 20 Bar Feeder
2.0mm - 20mm | .078" - .787"
Bar Length: 12'
Headstock Type: Fixed, Sliding
The FMB Turbo 3-26, available in either 6' or 12' configuration, is a magazine style automatic bar feeder designed for feeding round, square and hexagonal bar material into all types of sliding, fixed, CNC, or cam operated lathes. Quick change polyurethane guide channels allow for quiet operation of the Turbo 3-26 at high RPM while feeding round, square or hex bar stock. The Turbo 3-26 is compatible with all types of sliding or fixed, CNC or cam operated lathes with spindle bores up to 38mm.
FMB brand logo
Turbo 3-26 Bar Feeder
3.0mm - 26mm | 0.118" - 1.023"
Bar Length: 6', 12'
Headstock Type: Fixed, Sliding
The FMB Turbo 3-38, available in 6' or 12' configurations, is an magazine type, automatic bar feeder designed for feeding round, square and hexagonal bar material into all types of sliding, fixed, CNC, or cam operated lathes. Quick change polyurethane guide channels allow for quiet operation at high RPM while feeding round, square or hex bar stock.
FMB brand logo
Turbo 3-38 Bar Feeder
3.0mm - 38mm | 0.118 - 1.500"
Bar Length: 6', 12'
Headstock Type: Fixed, Sliding
FMB brand logo
Turbo RS 3-38 Bar Feeder
3.0mm - 38mm | .118 - 1.500"
Bar Length: 12'
Headstock Type: Sliding
The Turbo 5-55, 5-65, and 8-80 are compatible with all kinds of fixed headstock lathes. Swiss type synchronization device is also available.
FMB brand logo
Turbo 5-55 Bar Feeder
5.0mm - 55mm | 0.196" - 2.165"
Bar Length: 6', 12'
Headstock Type: Fixed, Sliding
The FMB Turbo 5-65, available in 6' or 12' configurations, is an automatic bar feeder for processing bars in the diameter range of 5-65mm and in lengths up to 3200mm, 3800mm, or 4200mm on machine tools. Quick change polyurethane guide channels allow for quiet operation at high RPM while feeding round, square or hex bar stock.
FMB brand logo
Turbo 5-65 Bar Feeder
5.0mm - 65mm | 0.196" - 2.559"
Bar Length: 6', 12'
Headstock Type: Fixed, Sliding
The FMB Turbo 5-65 A (Auto-Adjust) is a magazine style automatic bar feeder for processing bars in the diameter ranges of 5-65mm and in lengths from 12’ to 14’ on CNC lathes. Auto adjusting polyurethane guide channels allow for quiet operation at high RPM while feeding round, square or hex bar stock. The Turbo 5-65 A is compatible with all kinds of fixed headstock lathes. Swiss type synchronization device is also available.
FMB brand logo
Turbo 5-65 A Bar Feeder
5.0mm - 65mm | 0.196" - 2.559"
Bar Length: 12'
Headstock Type: Fixed, Sliding
The FMB Turbo 8-80, available in 8' or 12' configuration, is an automatic bar loading magazine feeder for processing bars in the diameter range of 8-80mm and in lengths up to 3200mm, 3800mm, or 4200mm on machine tools. Quick change polyurethane guide channels allow for quiet operation at high RPM while feeding round, square or hex bar stock.
FMB brand logo
Turbo 8-80 Bar Feeder
8.0mm - 80mm | 0.315" - 3.150"
Bar Length: 10', 12'
Headstock Type: Fixed, Sliding
A hero shot of an FMB Turbo 20-100 bar feeder
FMB brand logo
Turbo 20-100 Bar Feeder
20mm - 100mm | 0.787" - 4.00"
Bar Length: 12'
Headstock Type: Fixed, Sliding
